Hydrocont LK

Delivery Time: not specified

Level probe as a probe or suspension suitable for outdoor installation

Compact hydrostatic level measurement, with dry, capacitive sensor.
Analog output 4 … 20mA or 0 … 10V

  • Low cost sensor with no compromises in quality
  • To be used for hanging or screwed installations
  • Solid an precise ceramic cell



Description

The device Hydrocont® LK with integrated analogue evaluation electronic is a compact hydrostatic transmitter for continuous measuring of filling levels in liquids at hydrostatic pressures from 0 up to 1 bar within pressure less container, at process temperatures from – 40°C to +100°C.

The use of a capacitive measuring sensor with ceramic membrane, allows the use in nearly all fields of industry.

Application fields are e.g. the measurement of levels in reservoirs, clarification basins, deep wells etc., but also the filling level measurement in closed containers at liquids, like e.g. water, waste water, solvents, oil, sludge, fat, cleaning liquids, etc.



Function
The device Hydrocont® LK is used for filling level measurement by measuring the hydrostatic pressure.

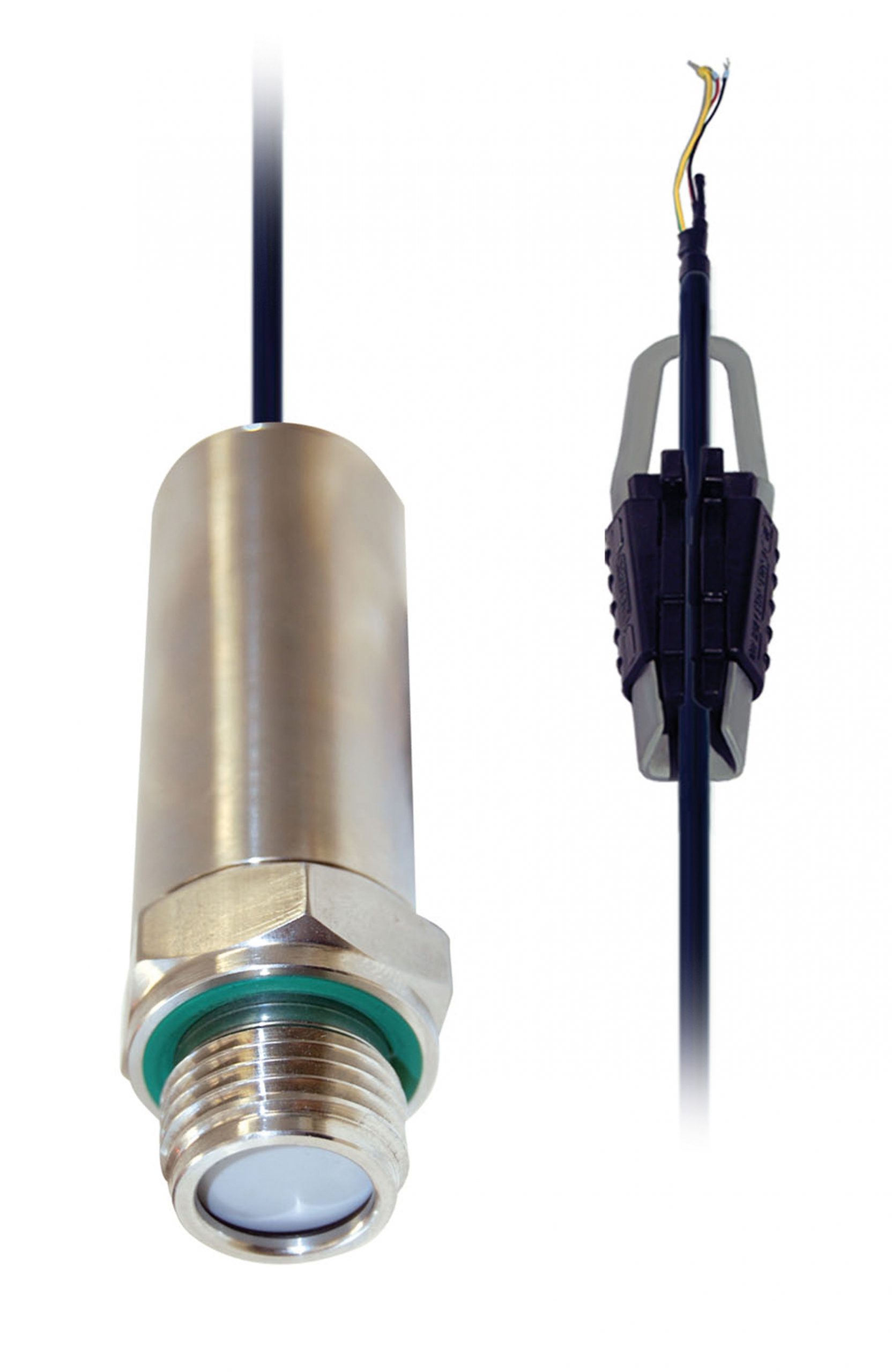

The device can be alternatively used as put in sensor that is sunken down into the liquid by the carrying cable and a suitable fastening, e.g. cable clamp fixing or screw plug or also be screwed-in from outside into the container wall.

Messzelle_kapazitiv 4_20mA_2_Draht 0_10V_3_Draht Genauigkeit_0_1 Ansprechzeit Frontbuendig
Supply voltage
2-wire 4…20 mA 10…30 V DC
3-wire 0…10 V 14…30 V DC
Supply current
2-wire 4…20 mA ≤ 30 mA
3-wire 0…10 V ≤ 6 mA
Measuring accuracy
Temperature deviation ≤ 0,15% FS / 10 K
Deviation in characteristics ≤ 0,1% / 0,25%  FS
Long term drift ≤ 0,15% FS / year (not cumulative)
Material
Membrane
(medium contact)
Ceramic AL2O3 96%
Process connection
(medium contact)
Steel 1.4404 (AISI 316L)
1.4571 (AISI 316 Ti)
Housing rope CrNi-Steel
Gaskets
(medium contact)
FPM – Fluoroelastomer (Viton®)
EPDM – ethylene-propylene-diene monomer
NBR – Nitrile Butadiene Rubber
Anschlusskabel Coated cable PE Polyethylen
Connection cable PE / PUR
Environmental conditions
Ambient temperature -20°C…+70°C
Process temperature -20°C…+70°C
Outdoor installation via process connection -40°C…+100°C
Process pressure ranges 0…1 bar
Protection class IP68
DIN EN 60529
