Flow sensor Flowcont Water FMS500

Description

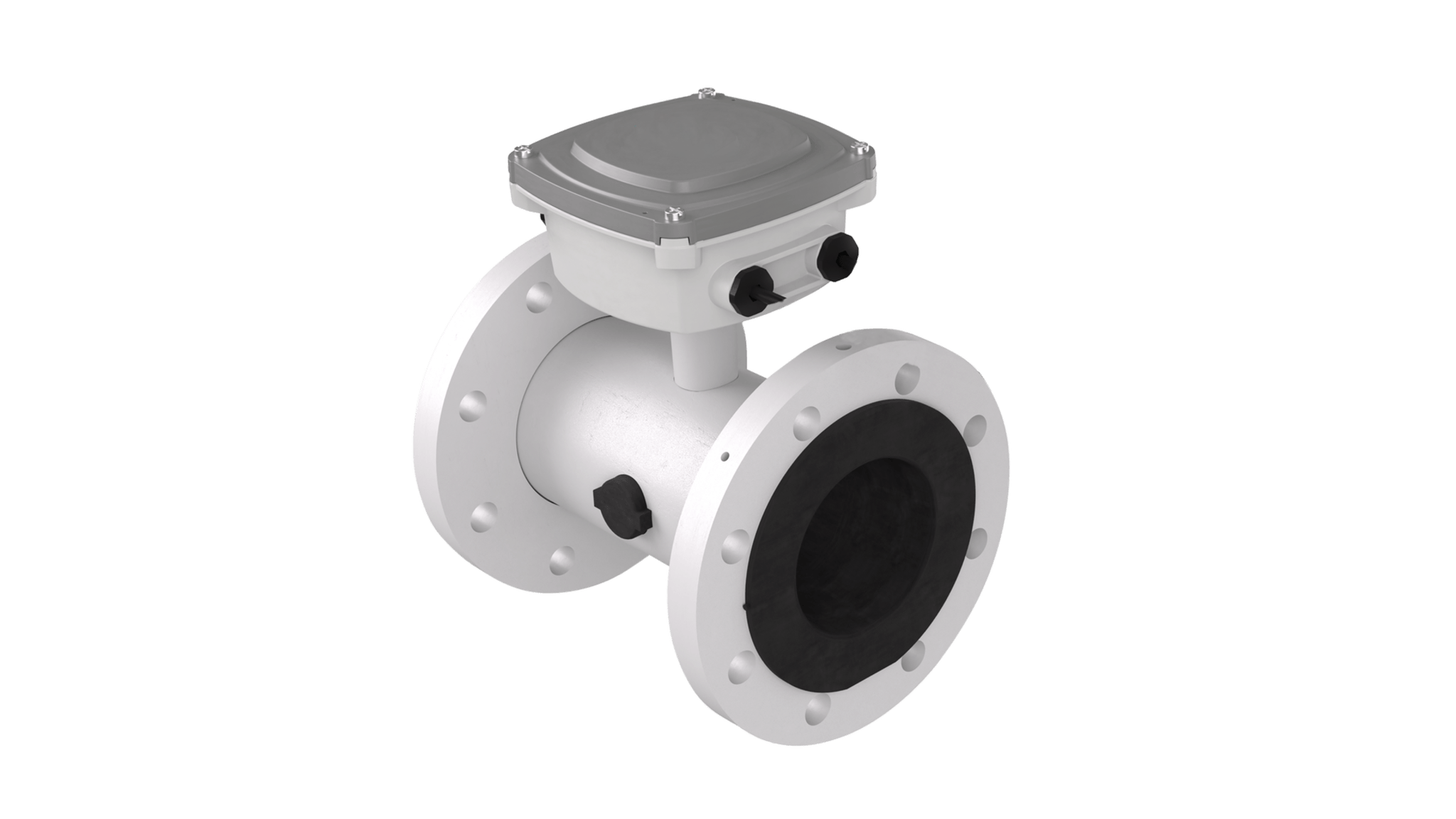

Flow sensor Flowcont Water FMS500

The Flowcont Water FMS500 is a magnetic flow meter sensor suitable for volume flow measurement of liquids (conductive) and is the ideal product for applications in water abstraction, wastewater treatment,
water distribution networks, and irrigation.
The rugged, fully welded design supports direct burial, constant flooding and to stand up a wide range of harsh chemicals found in water-based applications in many different industries.
Designed for highly accurate measurement in low-flow conditions, these meters can measure from very low velocities up to 10 m/s, giving it a very wide measurement range.
Combined with a flow meter transmitter it is a traditional externally powered electromagnetic flow meter system.

Benefits

• Installation also possible without calming section for inlet/outlet
• EPDM liner specifically for drinking water applications requiring special approvals
• NBR rubber liner for all water and wastewater applications
• Increased low flow accuracy for water leak detection
• Simple on-site upgrade to IP68 of a standard sensor allowing underground installation, permanent immersion or underwater installation
• Integrated grounding electrodes – no grounding rings required for many applications
• Short delivery time
• Built-in length according to ISO 20456 (up to DN 400 mm)
  SENSORPROM™ Technology provides an automatic upload of startup settings and calibration data for easy commissioning
• Plug & Play – enables easy replacement and commissioning of the transmitter in the field in just a few minutes
• Installation flexibility – compact or separate installation possible
• Validated calibration ensures accurate flow measurement (ISO/IEC 17025 accredited).
• Service and diagnostics – designed for easy on-site performance verification

Application

The Flowcont Water FMS500 with its NBR or EPDM rubber lining is a flow meter sensor for all kinds of water applications such as ground water, potable water, cooling water, wastewater, sewage, or sludge
applications.
Connected to the compatible transmitter FMT020, either mounted remotely or as a compact unit, it forms the magnetic flow.
meter system SITRANS FM520 which can be used in almost all general-
purpose water applications.
