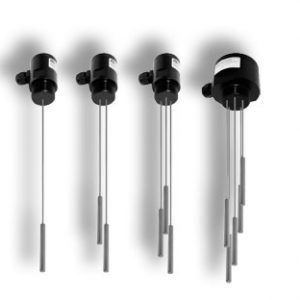

Electrode probe PUKK

Delivery Time: not specified

For conductive leak detection

For conductivities from 1 uS / cm
For process temperatures from -20 ° C to +60 ° C
Materials for corrosive products
Integrated electronics module for line break monitoring

  • Intergrated processor
  • Safe leackage detection even at low levels
  • Simple installation and setup


Categories: , ,


The leakage probes of the series PUK / PUKK are used in conjunction with a suitable evaluation for conductive leakage monitoring of electrically conductive products.

The leak detector is designed for a wide range of applications. The conductivity, even of aggressive contents, from 1 μS/cm are recorded at process temperatures from -20 ° C to +60 ° C.

Once the electrically conductive filling material forms a connection between the electrodes, a measurable current is flowing, which causes a reaction of the connected evaluation unit.

By the use of an AC voltage the corrosion of the electrode and the electrolytic decomposition of the contents is avoided.

An additional module (diode module LBM) for line monitoring in the housing can be installed in the device. In the event of a line break between the leak probe and a suitable evaluation the evaluation may issue an alert.

Korresionsbestaendig Masseelektrode_im_Kopf Montage_einfach
Operating pressure max. pressureless
Medium temperature -20°C…+60°C
Connection head POM
PP – Polypropylen
Probes Stainless steel 1.4571
Stainless steel 1.4404
Hastelloy® C

Documentation german

User manual

Documentation english

User manual

Product configurator
