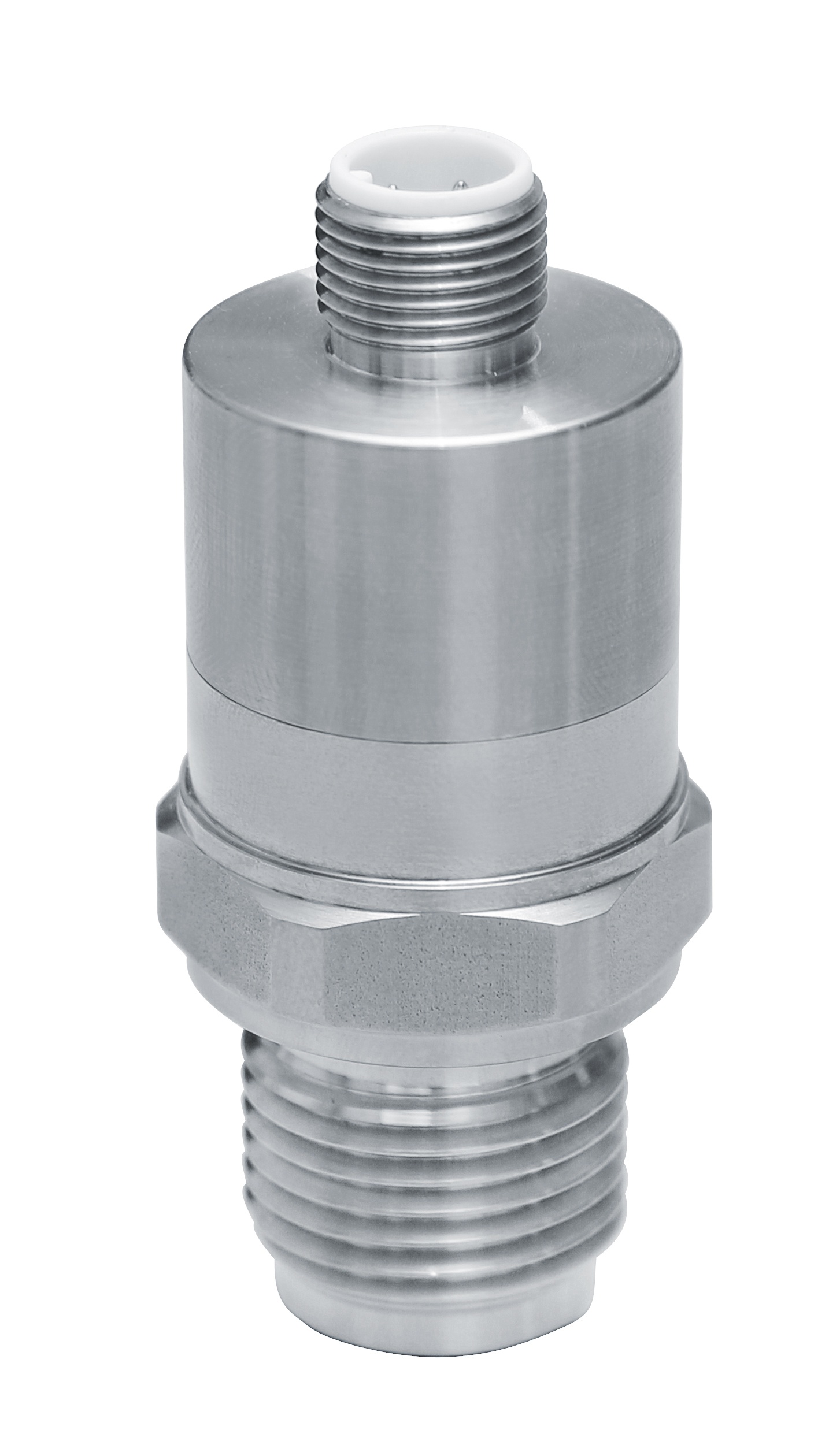

Precont® PU4SC
Pressure transmitter for general applications and monitoring of absolute or relative pressure in gases, vapors, liquids and dust – even from harzadous areas
- Highly accurate and long-term stable ceramic measuring elements
- Electronics versions with HART, IO-Link and Modbus
- ATEX approval
Description
The device Precont® PU4SC is an electronic pressure transmitter / pressure switch for monitoring, control and continuous measurement of pressures.
A high variety of versions of process connections and electronic types allows the use for a wide range of applications, also for demanding measuring requirements.
The front-flush process connection enables the cleanability of the wetted diaphragm to be integrated into the process, also by CIP/SIP cleaning processes.
Low-maintenance and trouble-free pressure measurement is thus also guaranteed in critical applications with viscose or also frequently changing media.
Due to its high accuracy and the digital adjustability by HART®, RS485 Modbus®-RTU or IO-Link® the device Precont® PU4SC can be suited to a wide variety of applications.
The robust design and the high-quality workmanship turns the device into a very high quality product, which even the most adverse environmental conditions cannot affect, whether the lowest temperatures when used outdoors, extreme shock and vibration stress or aggressive media.
A captive laser marking of the type label ensures the identifiability throughout the entire lifetime of the device.
Obviously is the optional marking of a measurement point designation resp. TAG, a customer label or of a neutral type label, of course also per laser marking.
A LABS- resp. silicone-free version, a factory calibration with calibration certificate and a customer specific configuration resp. preset is also optionally available like a material test certificate EN10204 3.1 or a factory certifications for drink water suitability.
Customer specific special versions can be realized short-term on request, e.g. special designs for the process connection or other process materials.
| Measuring range | |
|---|---|
| Nominal pressure PN | –0,1…0bar / -0,1…0,1bar / -1…0bar / -1…1bar / 0…0,05bar to 0…20bar |
| Output type A – Current 4…20mA HART® | |
|---|---|
| Analogue output 4…20mA | 3,9mA…20,5mA ≥ 3,8mA ≤ 22mA dI ≤ 1µA |
| Time behavior | T90 ≤ 5ms ton ≤ 0,2s |
| Interface | HART®-compliant (7.0) 1200 Bit/s |
| Output type V – RS485 Modbus®-RTU | |
|---|---|
| Interface | RS485, bidirectional Modbus®-RTU 9600 Baud (4800…38400 Baud) |
| Time behavior | T90 ≤ 2ms ton ≤ 0,1s |
| Output type L – IO-Link® | |
|---|---|
| Interface | IO-Link® V1.1 Com2 (38400 Baud) |
| Analogue output | 0mA…20,5mA (at 0…20mA) ≤ 0,05mA (at 0…20mA) ≤ 22mA (at 0…20mA) dI ≤ 1µA (at 0…20mA) 3,8mA…20,5mA (at 4…20mA) ≥ 3,6mA (at 4…20mA) ≤ 22mA (at 4…20mA) dI ≤ 1µA (at 4…20mA) |
| Switch output | 2x PP (Push-Pull) switch to +L/-L |
| Output | Uout ≤ 0,2V ≥ Us – 2V Iout = 0mA…200mA (current limited ≤ 450mA, short circuit protected) |
| Time behavior | T90 ≤ 2ms ton ≤ 0,1s |
| Auxiliary power | |
|---|---|
| Supply voltage Us (polarity protected) |
9 V…35 V DC (with electronic output variant A) 9 V…30 V DC (Ex) (with electronic output variant A) 6 V…35 V DC (with electronic output variant V) 9 V…35 V DC (with electronic output variant L without IO-Link®) 18 V…30 V DC (with electronic output variant L with IO-Link®) |
| Measuring accuracy | |
|---|---|
| Characteristic deviation | ≤ ±0,15% FSO ≤ ±0,5%FSO |
| Long term drift | ≤ ±0,2% FSO/year |
| Temperature deviation | Tk Zero ≤ ±0,015%FSO/K, ≤ ±0,75%FSO (-20°C…+80°C) Tk Span ≤ ±0,015%FSO/K ≤ ±0,5%FSO (-20°C…+80°C/≥0,4bar) / ≤ ±0,8%FSO (-20°C…+80°C/<0,4bar) |
| Process conditions | |
|---|---|
| Process temperature | Standard: -40°C…+100°C Extended: -40°C…+135°C (+140°C – 1h) |
| Pressure cycles | ≥ 100Mio. (1,2xPN) |
| Environmental conditions | |
|---|---|
| Environmental temperature | Standard: -40°C…+100°C Extended: -40°C…+125°C (+140°C – 1h) |
| Protection level | IP69K/IP67 (EN/IEC 60529) |
| MTTF | 463 years |
