Precont® PU4SE
Pressure transmitter for measurement of relative pressure in gases, vapors, liquids and dust – even from harzadous areas
- 2-wire electronics 4 … 20mA programmable via HART
- Versions with Modbus and IO-Link available
- Degree of protection IP69K
Description

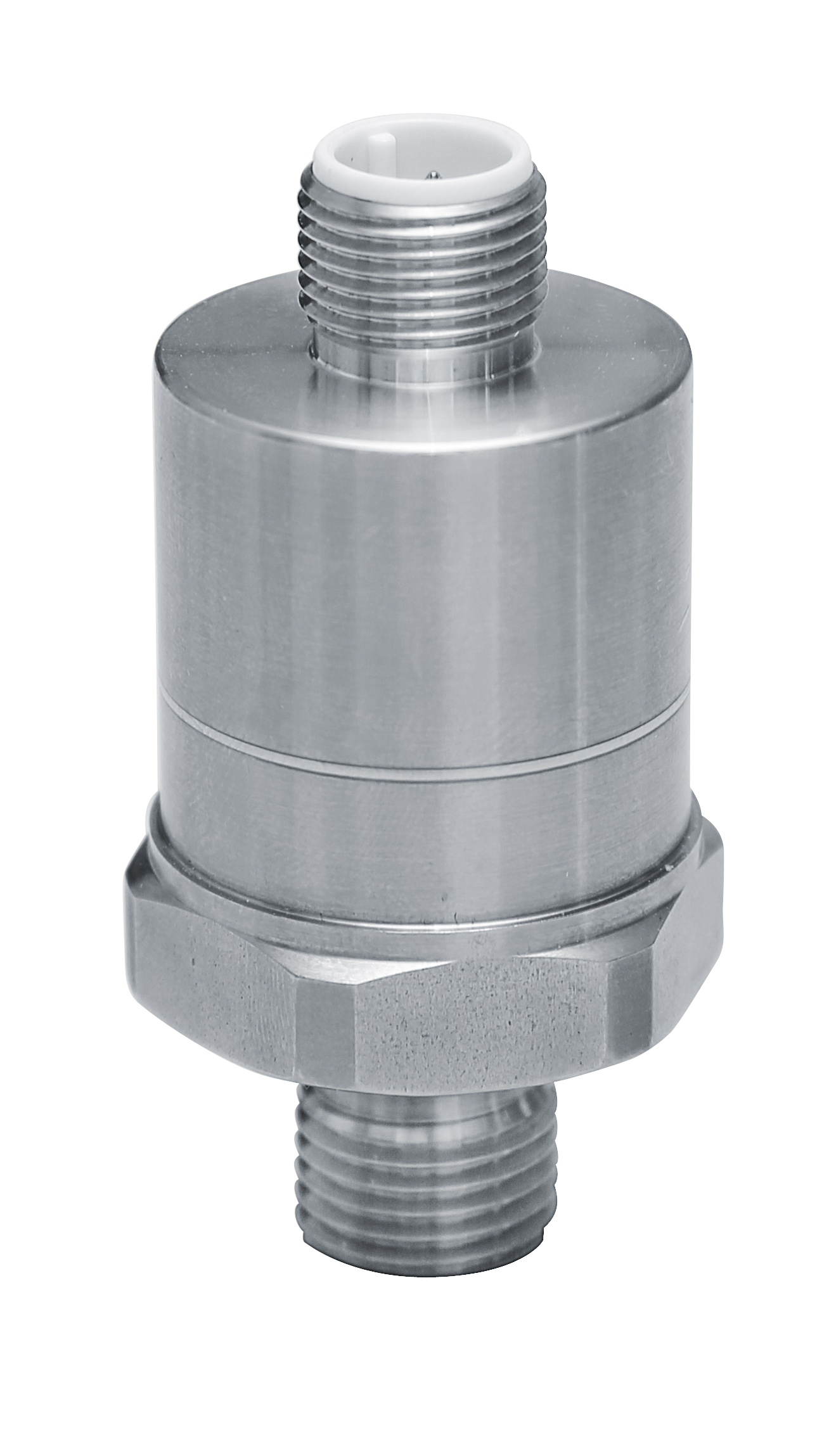

The device Precont® PU4SE is an electronic pressure transmitter / pressure switch for monitoring, control and continuous measurement of pressures.
A high variety of versions of process connections and electronic types allows the use for a wide range of applications, also for demanding measuring requirements.
Due to its high accuracy and the digital adjustability by HART®, RS485 Modbus®-RTU or IO-Link® the device Precont® PU4SE can be suited to a wide variety of applications.
The robust design and the high-quality workmanship turns the device into a very high quality product, which even the most adverse environmental conditions cannot affect, whether the lowest temperatures when used outdoors, extreme shock and vibration stress or aggressive media.
A captive laser marking of the type label ensures the identifiability throughout the entire lifetime of the device.
Obviously is the optional marking of a measurement point designation resp. TAG, a customer label or of a neutral type label, of course also per laser marking.
A LABS- resp. silicone-free version, a factory calibration with calibration certificate and a customer specific configuration resp. preset is also optionally available like a material test certificate EN10204 3.1 or a factory certifications for drink water suitability.
Customer specific special versions can be realized short-term on request, e.g. special designs for the process connection or other process materials.
| Messbereich | |
|---|---|
| Nenndruck PN | 0bar bis +1bar bis 0bar bis +1000bar |
| Ausgang Typ A – Strom 4 bis 20mA HART® | |
|---|---|
| Analogausgang 4 bis 20mA | 3,9mA bis 20,5mA ≥ 3,8mA ≤ 22mA dI ≤ 1µA |
| Zeitverhalten | T90 ≤ 5ms ton ≤ 0,2s |
| Schnittstelle | HART®-konform (7.0) 1200 Bit/s |
| Ausgang Typ V – RS485 Modbus®-RTU | |
|---|---|
| Schnittstelle | RS485, bidirektional Modbus®-RTU 9600 Baud (4800 bis 38400 Baud) |
| Zeitverhalten | T90 ≤ 2ms ton ≤ 0,1s |
| Ausgang Typ L – IO-Link® | |
|---|---|
| Schnittstelle | IO-Link® V1.1 Com2 (38400 Baud) |
| Analogausgang | 0mA bis 20,5mA (bei 0 bis 20mA) ≤ 0,05mA (bei 0 bis 20mA) ≤ 22mA (bei 0 bis 20mA) dI ≤ 1µA (bei 0 bis 20mA) 3,8mA bis 20,5mA (bei 4 bis 20mA) ≥ 3,6mA (bei 4 bis 20mA) ≤ 22mA (bei 4 bis 20mA) dI ≤ 1µA (bei 4 bis 20mA) |
| Schaltausgang | 2x PP (Push-Pull) Schaltend auf +L/-L |
| Ausgang | Uout ≤ 0,2V ≥ Us – 2V Iout = 0mA bis 200mA |
| Zeitverhalten | T90 ≤ 2ms ton ≤ 0,1s |
| Hilfsenergie | |
|---|---|
| Versorgungsspannung Us (verpolungsgeschützt) |
9 V bis 35 V DC (bei Elektronik-Ausgang Variante A) 9 V bis 30 V DC (Ex) (bei Elektronik-Ausgang Variante A) 6 V bis 35 V DC (bei Elektronik-Ausgang Variante V) 9 V bis 35 V DC (bei Elektronik-Ausgang Variante L ohne IO-Link®) 18 V bis 30 V DC (bei Elektronik-Ausgang Variante L mit IO-Link®) |
| Messgenauigkeit | |
|---|---|
| Kennlinienabweichung | ≤ ±0,5% FSO |
| Langzeitdrift | ≤ ±0,2% FSO/Jahr |
| Temperaturabweichung | Tk Nullpunkt + Spanne ≤ ±0,05% FSO/K |
| Prozessbedingungen | |
|---|---|
| Prozesstemperatur | -25°C bis +100°C |
| Druckzyklen | ≥ 10Mio. (1,2xPN) |
| Umgebungsbedingungen | |
|---|---|
| Umgebungstemperatur | -25°C bis +100°C |
| Schutzart | IP69K/IP67 (EN/IEC 60529) |
| MTTF | 463 Jahre |
